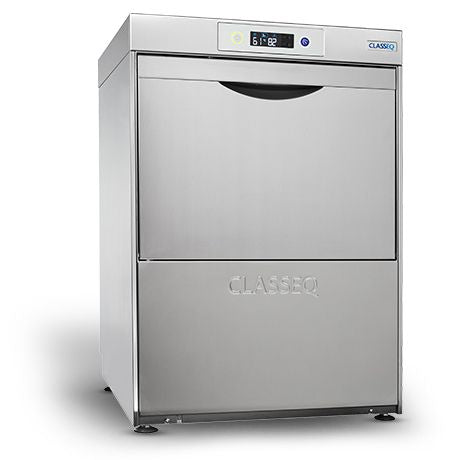

Classeq Under Counter Glass Washer wih Drain Pump - G500DUO

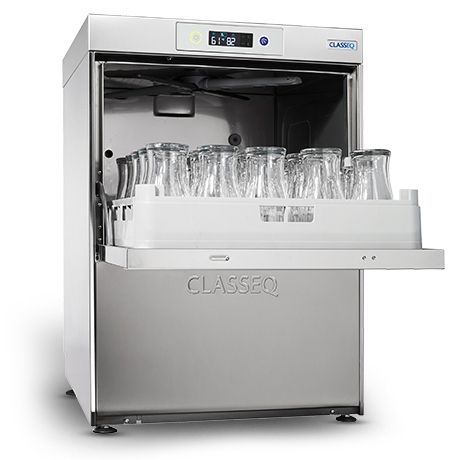

Compact, front-loading commercial glasswasher with a digital display, two wash programs and full WRAS compliance for effortless and consistently clean results. The G500DUO is an easy to operate, under counter glasswasher with a 500 x 500mm basket that holds 25 pint-sized glasses. It features two wash cycles standard (two minute) and light (1.5min), meaning that this machine is capable of washing up to 1000 glasses per hour.

The digital LCD display accurately shows the temperature of the wash tank and rinse boiler, re-assuring the operator that it is up to temperature and fully sanitising during the wash cycle.

The Duo range of products all come with drain pumps, rinse booster pumps and built in chemical dispensers ensuring they meet all installation regulations and requirements.

Two Wash Programs
Standard (2 min) and light (1.5 min) cycles allow for maximum output without compromising wash quality.

Optional Electrical Configuration
The G500DUO comes standard as 30Amp Single phase, but can be optionally configured for 13 Amp 3 Phase, or 13 Amp Single Phase (Hot fill recommended on 13Amp Single phase to minimise any loss in performance).

Simple Controls
The G500DUO is simple to use with two control buttons (on/off & start/stop), plus two smaller buttons for selecting between wash cycles.

Water Board (WRAS) Compliant
All Duo machines have a 'Type A' air gap which completely prevents any dirty water from going back into the mains water supply (an essential and legal requirement).

Colour Coded Display
Amber Flashing - Machine Heating
Blue - Machine in Cycle
Green - Machine Ready

Built-in Components
The G500DUO comes with a drain pump, rinse booster pump, built-in chemical dispenser and full double-skinned construction, ensuring they meet all installation regulations and requirements.

Technical Specifications
Width:570mm
Height:830(min), 870(max)mm
Depth:605mm
Depth - Door Open: 987mm
Clear Entry Height: 343mm
Drain Size: 40mm
Water supply connection: G3/4 (3/4 BSP)
Required Water Flow Rate: 11 L/min (DUO) / 4 L/min (DUOWS only)
Minimum allowed supply water pressure: 0.5 bar (DUO) / 2.0 bar (DUOWS only)
Minimum Incoming Water Temperature: 4c
Gravity Drain Height: 40mm
Pumped Drain Height: 600mm
Amps Required: 30A 1 Phase
Operating voltage: 220-240V / 1N~ / 50Hz
Total Connected Load: 6.58kW
