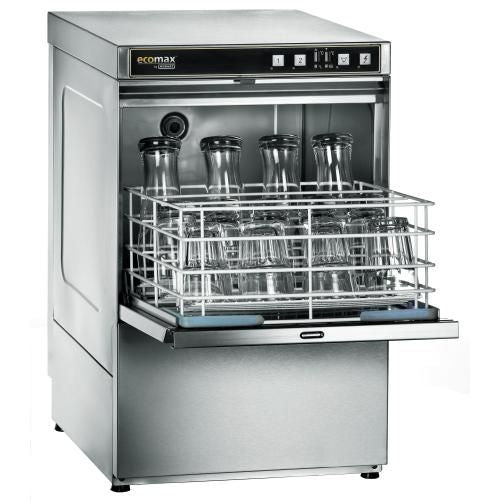

Hobart Ecomax F504 Dishwasher

The Hobart Ecomax F504, with its ability to wash up to 60 racks per hour and with a cycle time of 60 – 180 seconds, this dishwasher is powerful and gives great results. Manufactured with stainless steel and a double walled front door to reduce noise, this unit is perfect for front or back of house use. With rounded corners, smooth surfaces and the assistance of the self cleaning cycle, it is easy to keep the wash chamber in clean, hygienic condition.

Supplied with 1 x plate rack and 1 x cutlery basket.

Product Features

• Made in Germany
• Supplied with 1 x plate rack and 1 x cutlery basket
• 100% production test of all machines
• Robust door hinge design
• Digital temperature indication
• 60 racks per hour
• 60-180 second cycle times
• 25 litre wash tank
• 2.9 litre of water per cycle
• 40mm adjustable feet
• Easy to use
• Solid design made of stainless steel
• Upper and lower rotating seperate wash and rinse arms for consistent results and lowest consumptions
• Integrated rinse agent dispenser
• Heater with thermostatic control
• Incl. electrical cable and flexible water supply hose and drain hose
• Integral drain pump
• Depth with door open: 999mm
• 360mm loading height
• Low noise and reduced heat radiation by the double walled front door
• Easy to clean - Rounded corners, smooth surfaces and the deep drawn rack track in combination with the self cleaning cycle make it easy to keep the wash chamber in clean hygienic condition
• 4.1kW 230/50/1 FUSED AT: 1 x 25amps.
• CONFIGURABLE TO:
• 5.9kw 400/50/3 FUSED AT: 3 x 16amps
• 2.2kW 230/50/1 FUSED AT: 1 x 13 amps

Product Specification

• Brand Hobart Ecomax
• Category 500mm Basket Dishwashers (18 plates)
• MPN F504-20B
• Warranty Manufacturers 1 year parts & labour
• Weight 64 KG
• Power Supply Hardwired - This unit requires a hardwired electrical supply to be installed by a qualified electrician
• Plate Capacity 18
• Width (External) 576mm
• Height (External) 820mm
• Depth (External) 604mm
• Finish Stainless Steel
• Basket Size 500mm
• Break Tank Yes
• Integral Water Softener No
• Built In Drain Pump Yes
• External Rinse Boost Pump Yes
• Loading Height 360mm
• Number of Baskets 1
• Packaged Width 520mm
• Packaged Height 840mm
• Packaged Depth 760mm
• Packaged Weight 84 KG
